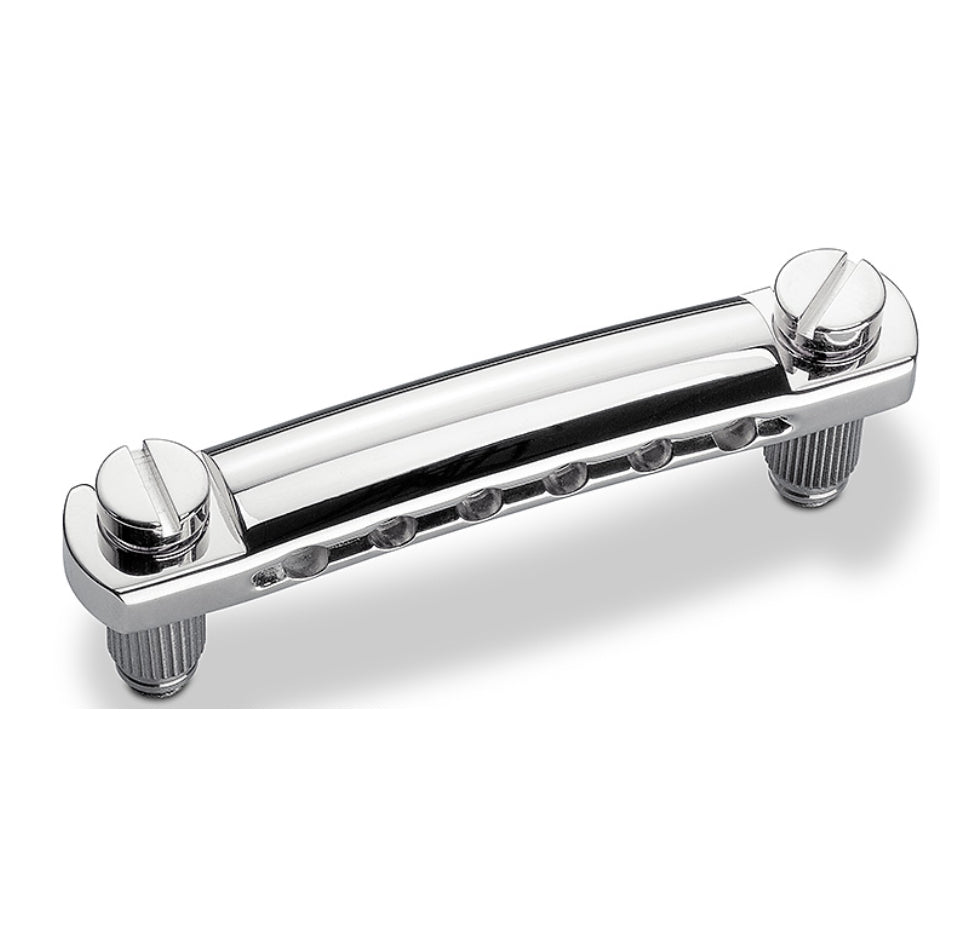

Schaller Stop Tailpiece 12050200 (Chrome)

Special stop tailpiece for our STM and GTM bridges

This tailpiece is usually installed straight (i.e. parallel to the frets) on the body of a guitar.

Suitable for the following bridges:

• STM roller bridge
• GTM with brass saddles
• GTM with titanium saddles

Technical specifications

• Distance height adjustment screws: 81 mm
• String spacing (E-e): 51.5 mm
• String radius: 12″, usable for fretboards from 10 to 14 inch
• Maximum string gauge: 80
• Weight: 78 gram, 122 gram with accessories
• Special feature: also suitable for left-handed models

Scope of supply

• 1 x stop tailpiece
• 2 x press-in bushings 5/16 inch 24 UNF
• 2 x height-adjustment screws 5/16 inch 24 UNF
