Paul Reed Smith PRS MT100 Mark Tremonti 100w Tube Amplifier Head Black Tolex
Three Channel Command
The result of many years of R&D and road-testing, the MT 100 is a professional amp for serious musicians. Built on a robust chassis, the MT 100 features custom transformers and three independent channels with identical controls but truly unique voices.
Each of the MT 100’s three channels is built from its own unique circuit with dedicated preamp tubes to ensure the voicing of each channel is exactly as intended. The Clean channel (like the MT 15) stays pristine and chimey – try it with split or single coils to hear it sing. The Gain channel (also like the MT 15) gets lush heavy tones with massive bass response that is never muddy. And, the added Overdrive channel (modeled after one of Tremonti’s favorite personal amps) brings an incredibly flexible gain structure and musical midrange response to this already versatile amp platform. Select your channel on the amp face or via the included footswitch – both feature matching channel lights so you’ll never lose your place. All three channels share the same preamp tube type (12AX7’s) for ease of servicing.
At a powerful 100 watts, the value of the MT 100 well exceeds its price tag. It is a straightforward, powerful amp full of aggression and articulation, and the onboard effects loop means your pedals are welcome to join the party.
Please note: Mind your master…volume that is. On the Overdrive and especially on the Lead channel, keep the Master down to start. On the Lead Channel, keep the Master below 10 o’clock to avoid dangerous volumes!
SPECIFICATIONS
GENERAL | |
Available Configurations | Head |
Channels | (3) Clean, Overdrive, & Lead |
ELECTRONICS | |
Wattage | 100 |
TUBES | |
Power Tubes | (4) 6L6GC |
Preamp Tubes | (8) 12AX7 |

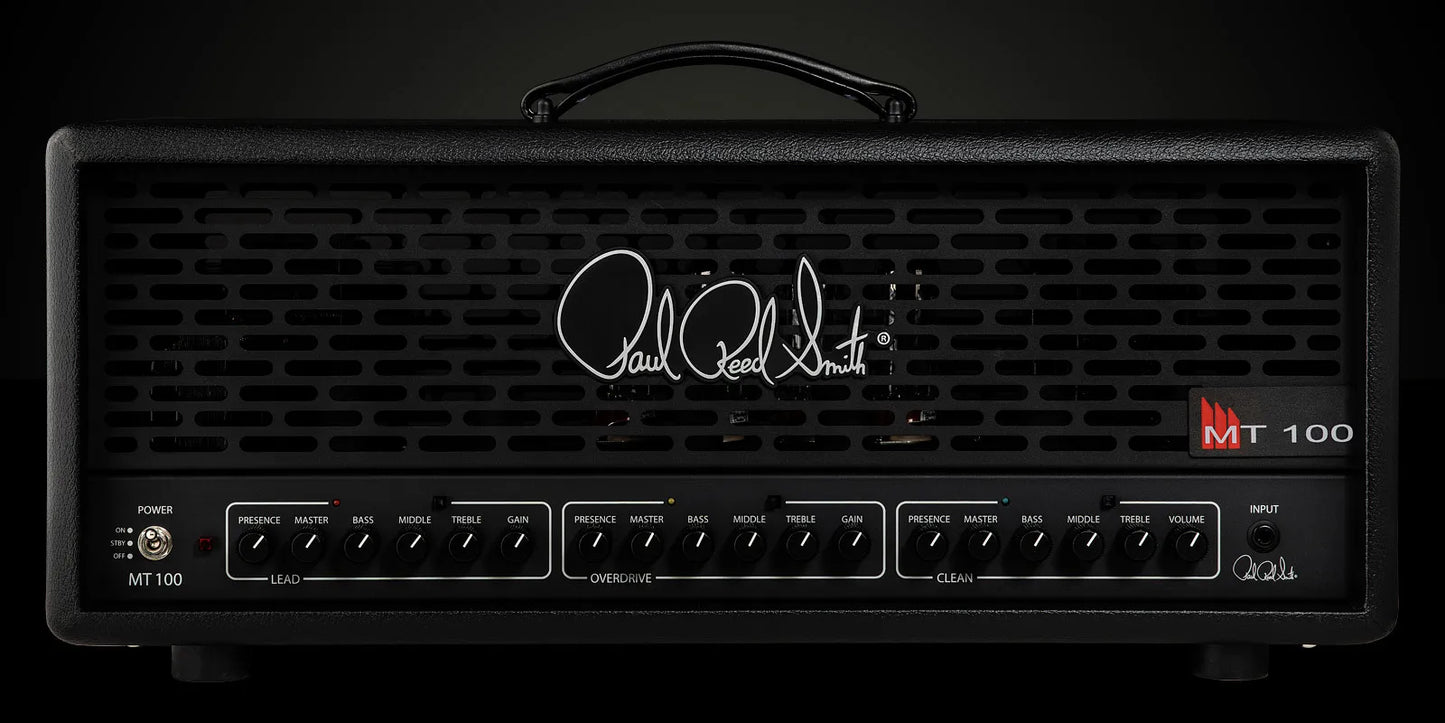

FRONT PANEL CONTROLS | |
Lead Channel | Presence, Master Volume, Treble, Middle, Bass, Gain |
Overdrive Channel | Presence, Master Volume, Treble, Middle, Bass, Gain |
Clean Channel | Presence, Master Volume, Treble, Middle, Bass, Volume |

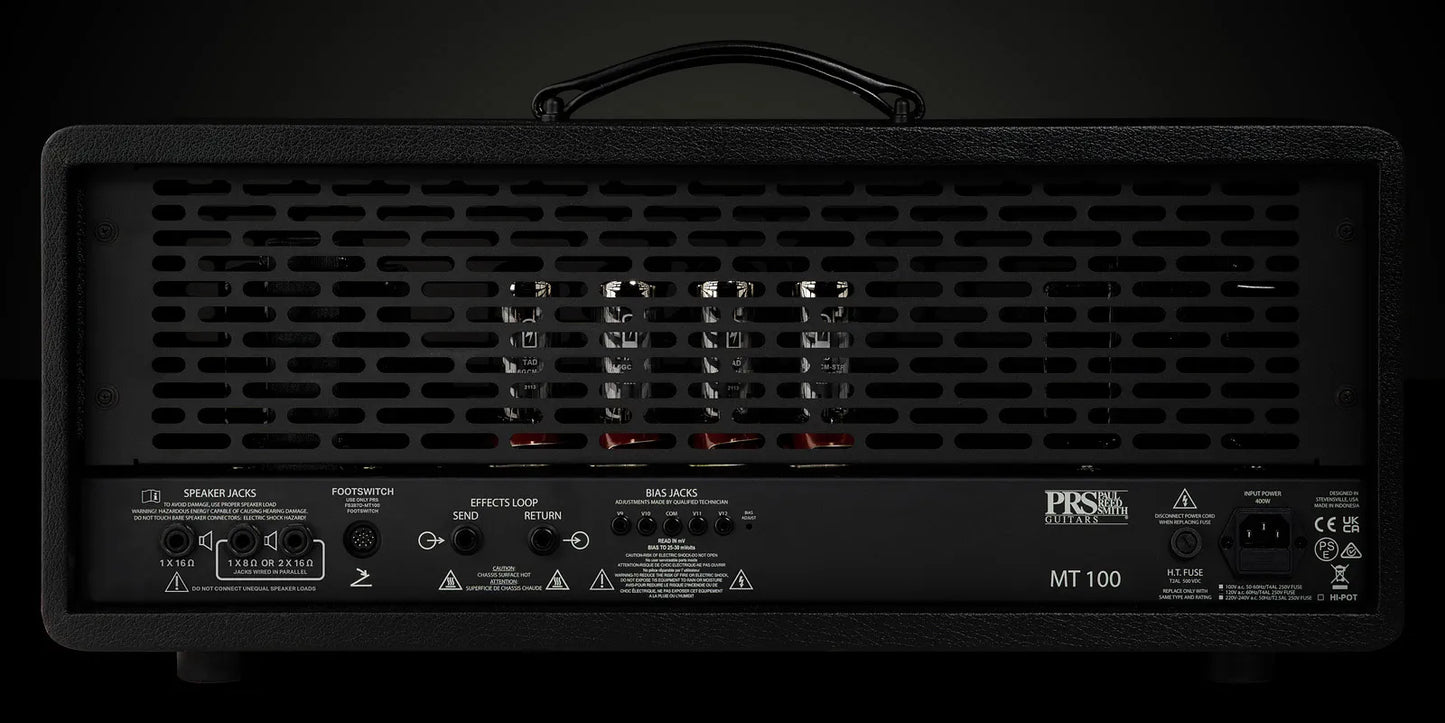

BACK PANEL FEATURES | |
Inlet | Fused Power Inlet (IEC) |
H.T. (B+) Fuse | Screwdriver Accessible |
Effects Loop | Series, Tube Driven |
Extension Speaker Jacks | 3 |
Ohm Switching | (2) 8 ohm (parallel), (1) 16 ohm, ¼” phone |
Bias | Adjustable with Monitoring |
Footswitch Jack | 8-pin DIN |
HARDWARE | |
Covering | Black Tolex |
MEASUREMENTS | |
Amp Width | 26” (66.04 cm) |
Amp Depth | 10.85” (27.56 cm) |
Amp Height | 11” (27.94 cm) |
Amp Weight | 43.2 lbs (19.6 kg) |
INCLUDED ACCESSORIES | |
Included Accessories | 3-Button Footswitch (Channel Selection) |
PREAMP TUBE POSITIONS & FUNCTIONS | |
V1 | Input |
V2 | Clean Channel |
V3 & V4 | Overdrive Channel |
V5 & V6 | Lead Channel |
V7 | Effects Loop |
V8 | Phase Inverter |
