Line 6 DL4 MkII Delay Looper Pedal

The DL4™ Delay Modeler has remained one of the most widely used delay pedals in the world for more than two decades. The DL4 MkII includes all the sounds and features of the original, while introducing new sounds and features. The 15 new MkII delays were drawn from our HXTM family of amp and effects processors and the 4-Switch and 1-Switch loopers offer up to 240 seconds of record time (expandable to several hours using an optional microSD card). There's an XLR microphone input, MIDI In and Out/Thru connectors, heavy duty footswitches with colored halo rings, three bypass options, and a jack for connecting an optional expression pedal or two footswitches. The DL4 MkII is also smaller and lighter than the original, making it an even more appealing choice for modern musicians.

Features

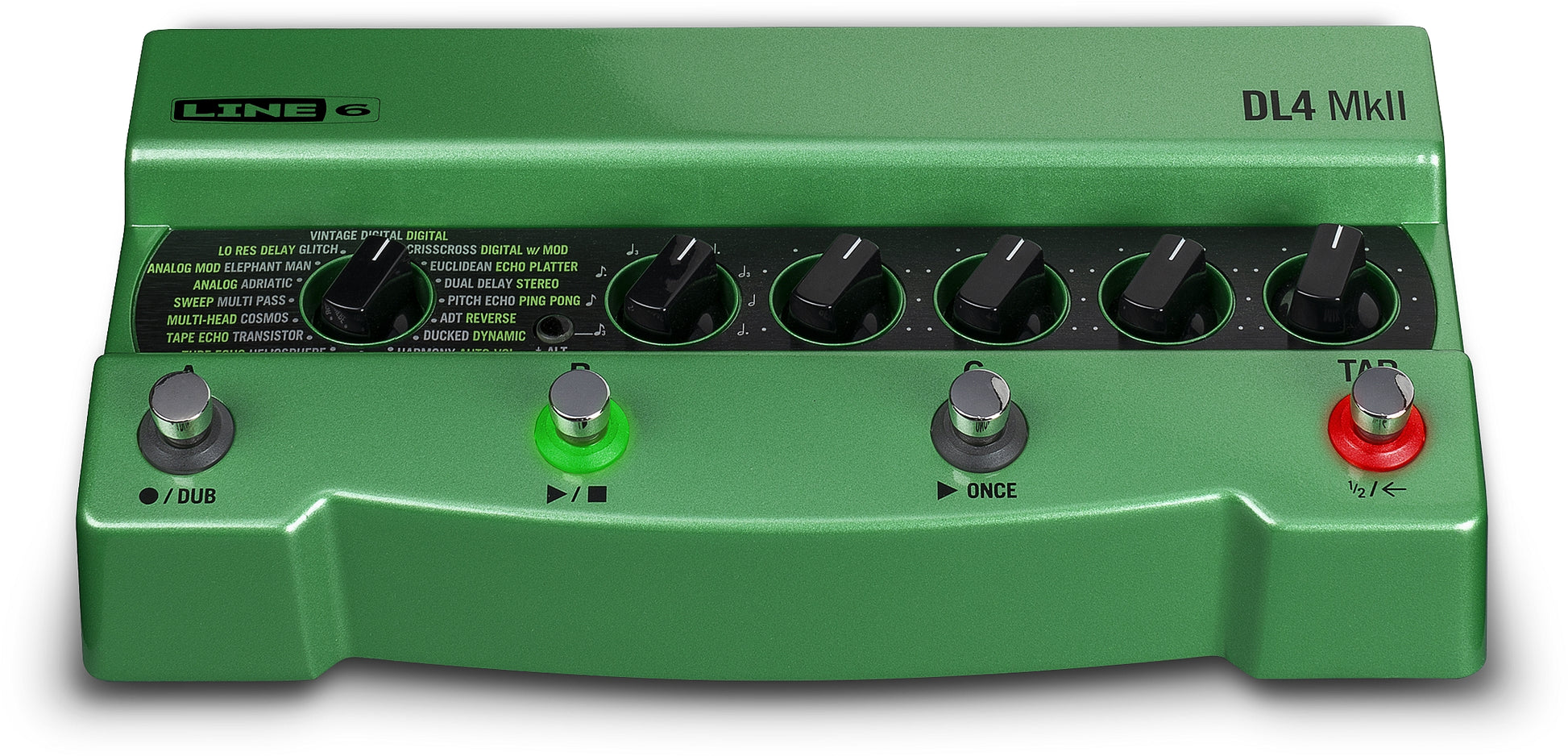

• Identical knob and footswitch layout as the original DL4

• 30 Delay options: 15 MkII plus 15 Legacy DL4

• 2 Loopersmono/stereo and pre/post signal path options

• Up to 240 seconds of looping time, or several hours with optional microSD card

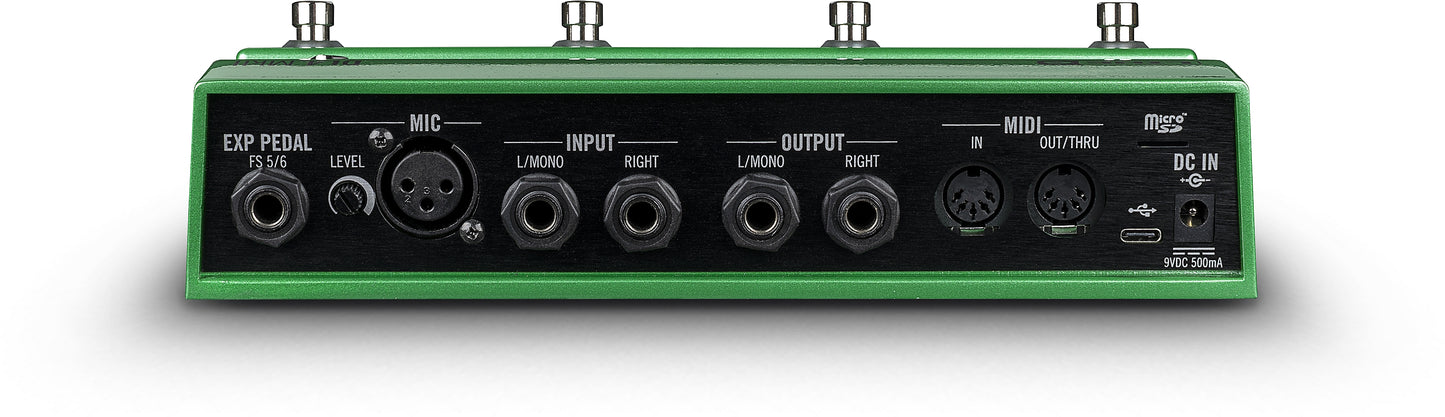

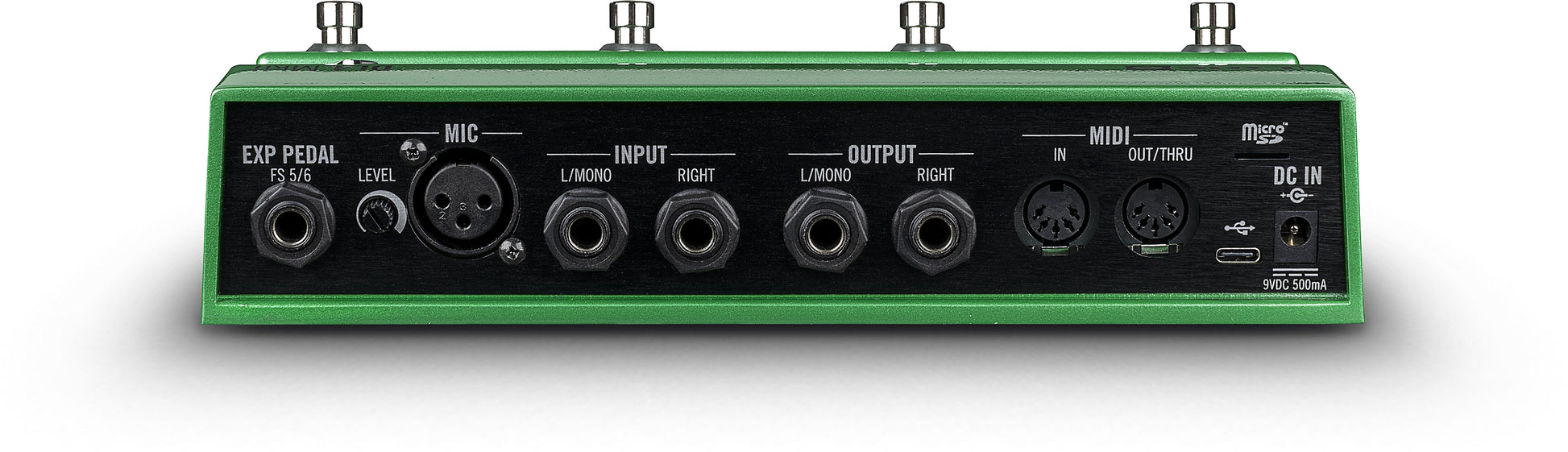

• XLR dynamic microphone input for vocal processing and looping

• MIDI In, Out/Thru DIN connectorsreceives PC and CC messages

• 128 Presets via MIDI, with footswitch control of up to six

• Switchable true, buffered, or DSP bypass

• Input for optional expression pedal or two additional footswitches

30 Ways to Delay

Fans of the original DL4 delay pedal will find all of their favourite sounds exactly where they expect them to be, with the same Tweak and Tweez control parameter assignments they've become accustomed to. The new MKII delays were drawn from HX family of amp and effects processors, and include both more recent versions of classic effects and cutting edge Line 6 originals such as the super vibey Glitch Delay.

Two Ways to Loop

The DL4 MKII features a simple 1-switch looper in addition to a classic 4-switch looper, both of provide up to 240 seconds of recording time. By inserting an optional microSD card into the slot on the rear of the pedal, recording time may be extended up to several hours and a loop may be stored across power cycles. The loopers operate in either mono or stereo and may be positioned in the signal chain before of after other effects.

Microphone Input

It's no secret that the DL4 has been used for processing and looping by lots of people besides guitarists, including vocalists and other who capture their performance with a microphone. Now, dynamic microphones can be plugged directly into the pedal's XLR Mic input, eliminating the need for converter cables, mixers, or other external devices. This features also makes the DL4 MKII a handy tool for sound designers and other sonic adventures.

MIDI Magic

Onboard MIDI In and Out/Thru DIN connectors enables the DL4 MKII to receive continuous controller, program change, and other MIDI messages from external sources such as MIDI controllers, thus allowing parameters to be modified dynamically and presets to be selected remotely. The DL4 MKII provides access to three presets using the A,B, and C footswitches, or six if the Tap switch is set to toggle between two banks of presets (A,B,C and D,E,F). The DL4 MKII can store up to 128 presets, selectable via MIDI.

Specifications

Construction: Cast aluminum

Delays: 30

Reverbs: 15

Looping: Mono or stereo

Looping Time: 240 seconds

Power: 9V DC-1g power supply

Dimensions (HxWxD): 2 x 9.25 x 4.5 inches

Weight: 2.03 lbs.
