Ibanez Layer Delayer LD-303 Pedal Variable Multi Head Delay

Analog/Digital Delay

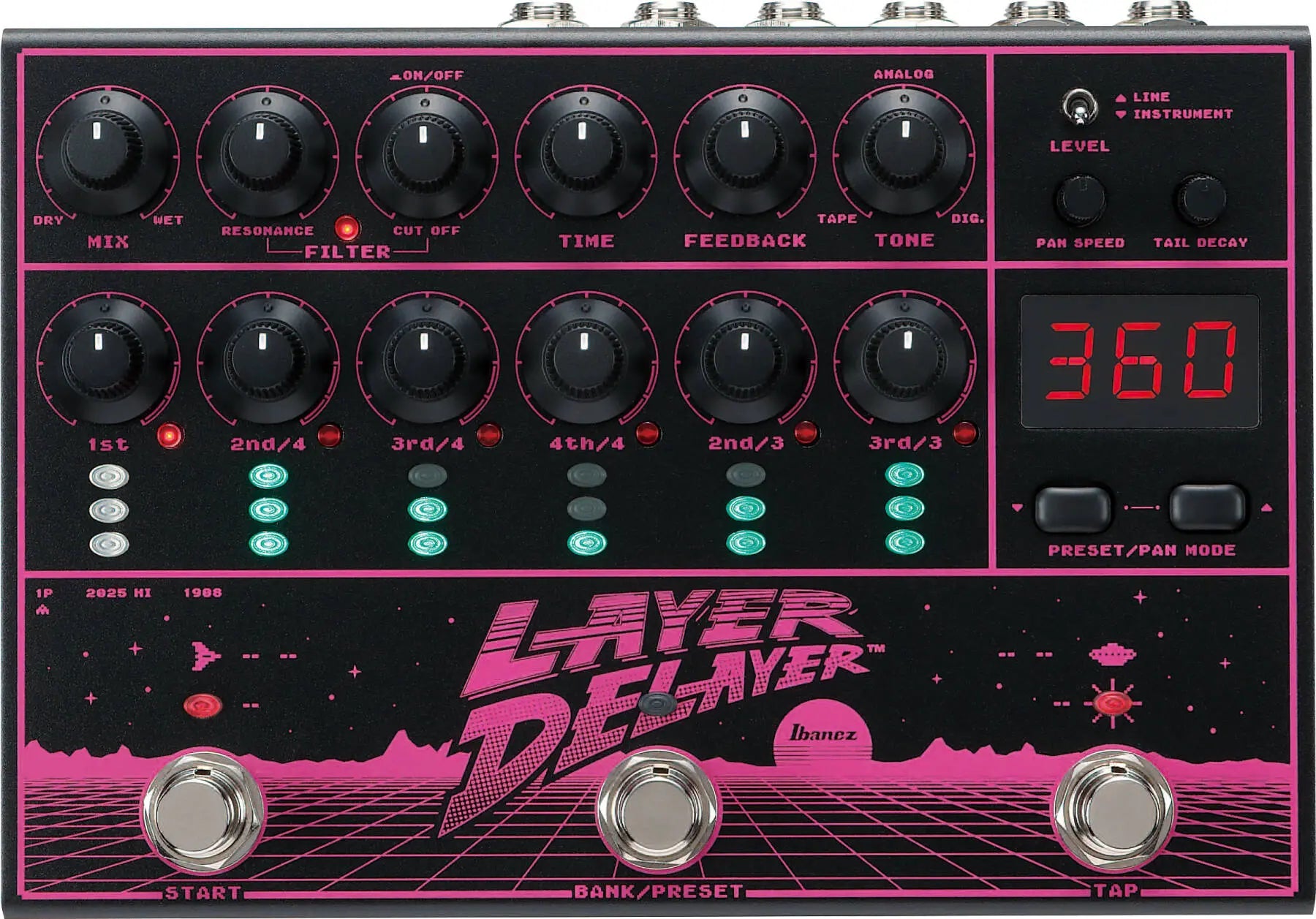

The Ibanez Layer Delayer is a revolutionary pedal that redefines the possibilities of delay effects. Unlike traditional tape echoes, this innovative device generates 16th notes and triplets delay signals, each with independent volume controls, allowing you to create intricate rhythmic patterns and sonic textures. The TONE and FILTER controls let you sculpt the timbre of your delay signal, from subtle warmth to aggressive distortion. Additionally, the FX loop expands your sonic palette by incorporating external effects into your delay chain. With its groundbreaking features and flexible routing options, the Layer Delayer empowers you to forge your own sonic identity and explore new sonic frontiers. Whether you're a guitarist, bassist, keyboardist, or producer, the Layer Delayer will add a unique dimension to your musical pursuits.

Delay Signal Volumes
The delay time is set to a quarter note, and the pedal generates corresponding 16th note and triplet delay signals. Each delay signal can be independently boosted up to 3dB.

Tone
This effect transitions between three distinct delay types: digital, analog, and tape echo, offering a rich and evolving sonic palette.

Filter
This effect emulates the classic low-pass ladder filter, a hallmark of Moog® synthesizers. High RESONANCE with adjustable CUTOFF frequency delivers the distinctive, edgy character of the Moog ladder filter. Zero RESONANCE provides a more standard low-pass filter response.

Tail Decay
The "Tail" feature allows the delayed signal to persist even after the effect is deactivated. This knob controls the feedback level of the tail, determining how long the delayed signal lingers. Setting the parameter to 0 provides true bypass behavior, instantly silencing the output when the effect is turned off. Conversely, setting the parameter to a high value, typically between 90 and 100, creates a long, sustained trail of the delayed signal, even after the effect has been bypassed.

Auto-panning
One of the primary advantages of stereo-out equipment is the panning feature. The Layer Delayer incorporates 8 distinct auto-panning modes, enabling the delayed signals to sweep dynamically across the stereo field. These modes include left-to-right, right-to-left, and pin-pong panning. Users can further customize the panning effect by selecting between wide and narrow sweep widths for each mode, and by adjusting the overall sweep speed.

MIDI
You can control all of the parameters in the Layer Delayer using MIDI controllers. It also supports MIDI clock message that synchronizes the delay time.

Features:
Independent variable volume control of 16th and triplet  delay notes
Simulated digital delay/analog delay/tape echo tones that gradually transition in between Simulated low-pass ladder filter
Variable tail decay, 8 auto-panning modes, and a  tap tempo foot-switch
20 factory presets in 50 presets
The Layer Delayer app, the latest firmware and its updater  are available on Ibanez.com

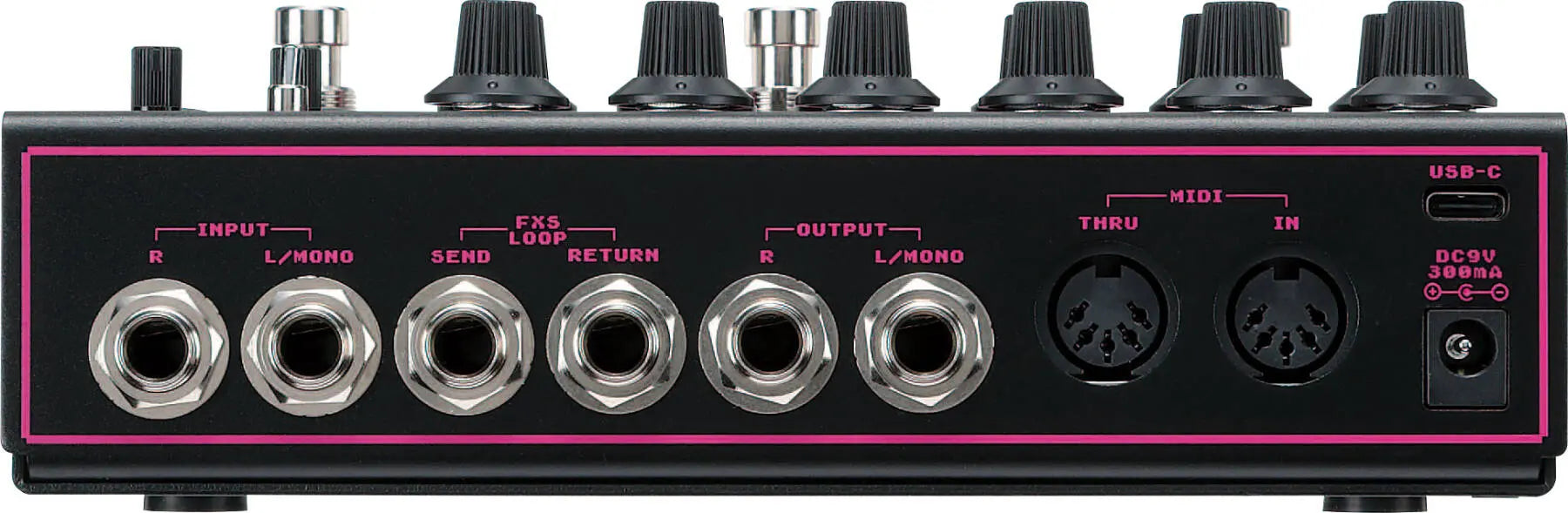

Stereo in/out, FXs loop on the delay signal path, and  MIDI in/through
Size: 175 (W) x 125 (D) x 62 (H) (mm)
Power supply: Only external DC 9V AC adapter (center negative)
Required current: 300mA@9V
