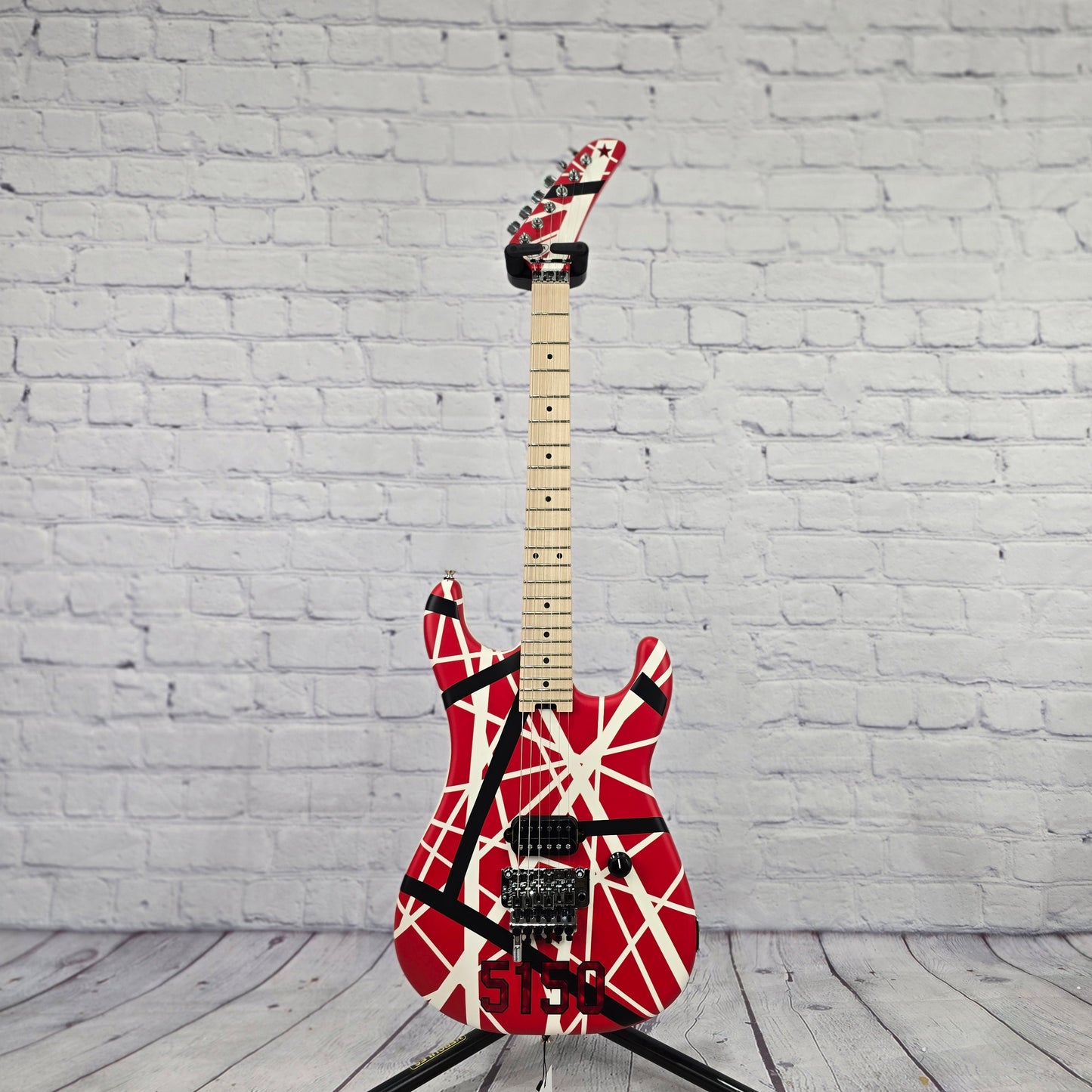

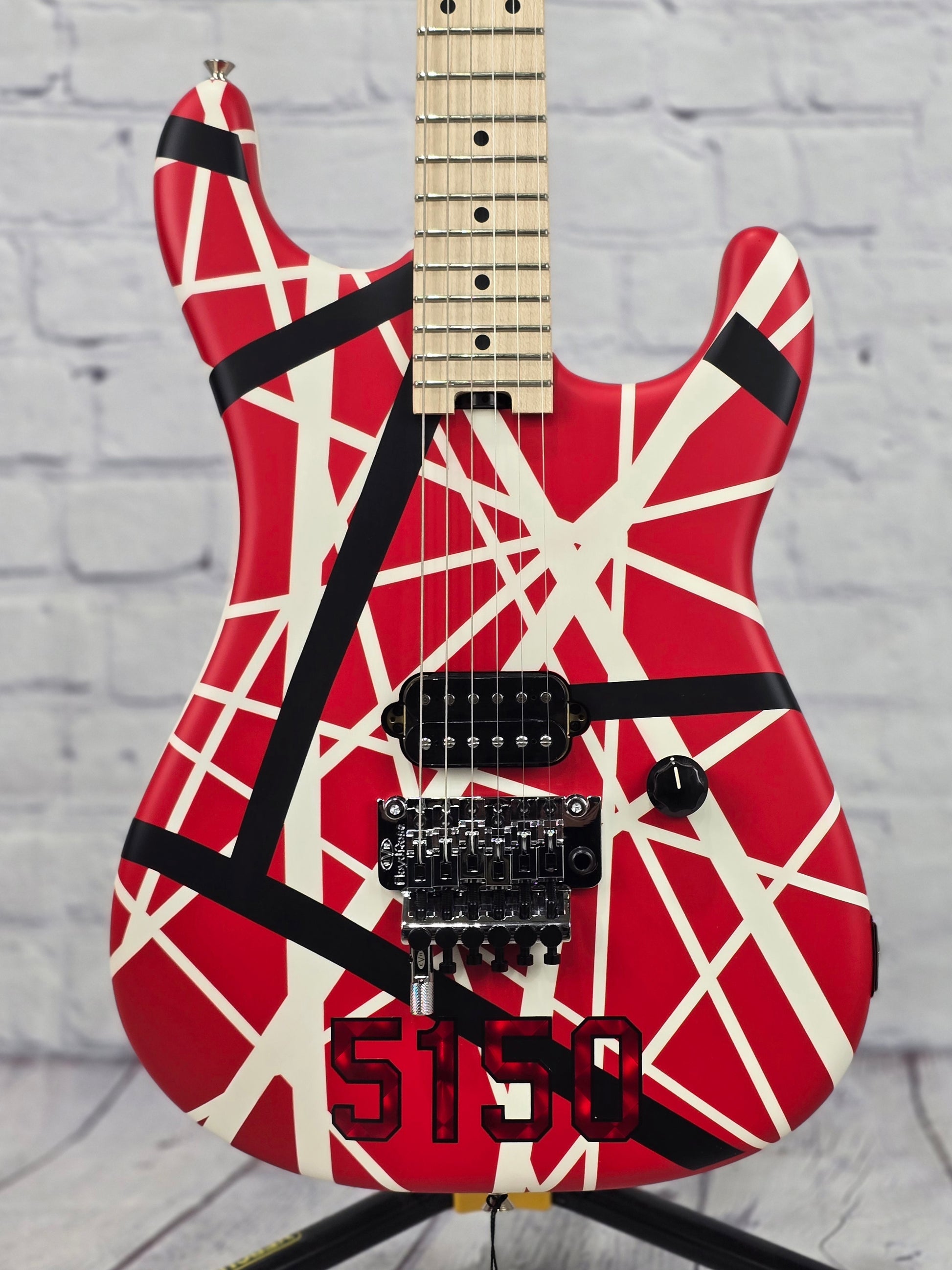

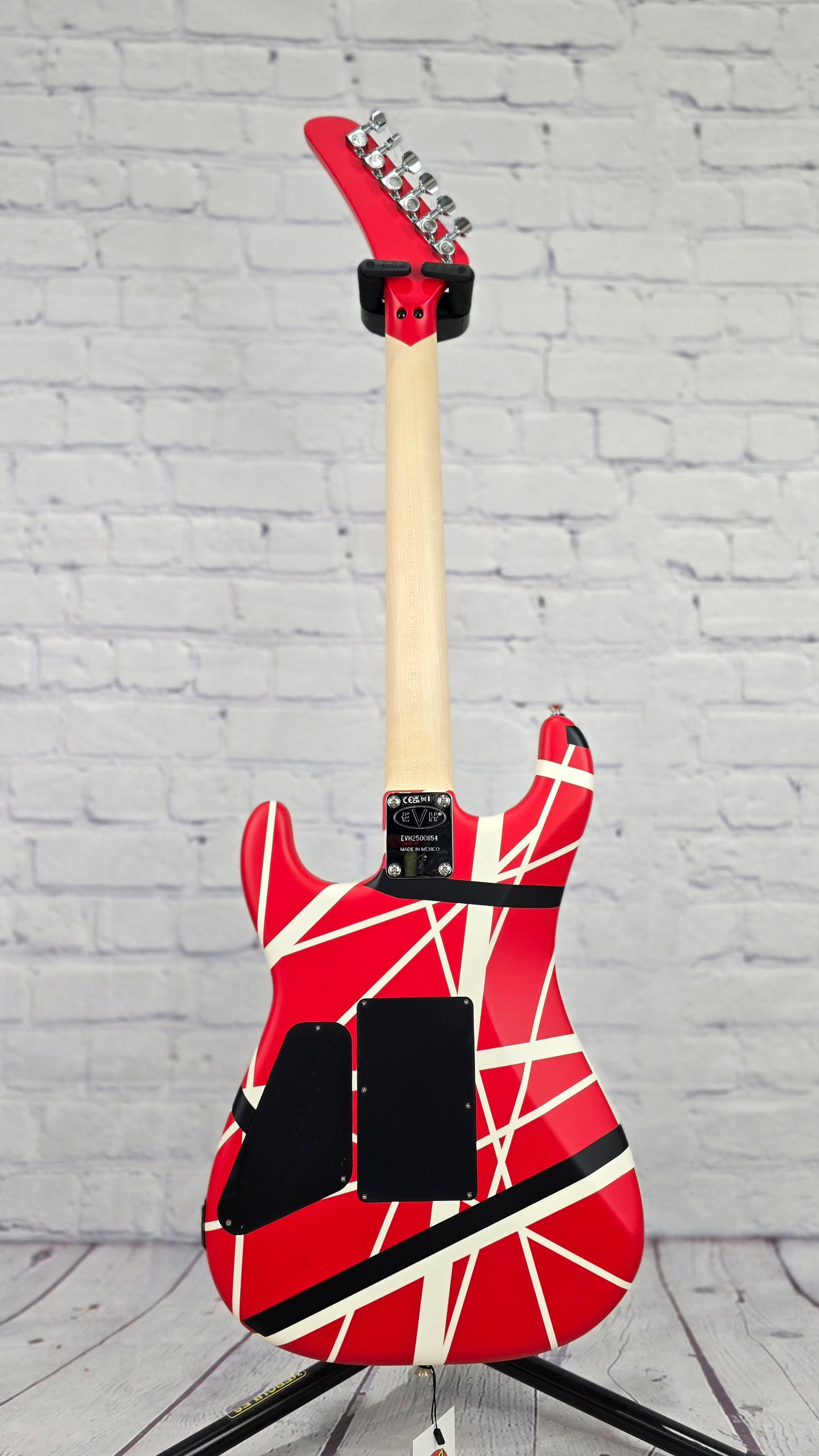

EVH Guitars Striped Series 5150 6 String Electric Guitar R/B/W "5150" Striped Pattern

When Eddie Van Halen introduced his famous red, white and black striped 5150™ guitar in 1984, he never would have fathomed the thousands of copies it would inspire. But then again, Eddie has made a career of being copied in every which way imaginable. EVH proudly introduces a new Striped Series 5150 model based on his original instrument, featuring his distinctively striped 5150 motif and single humbucker setup.

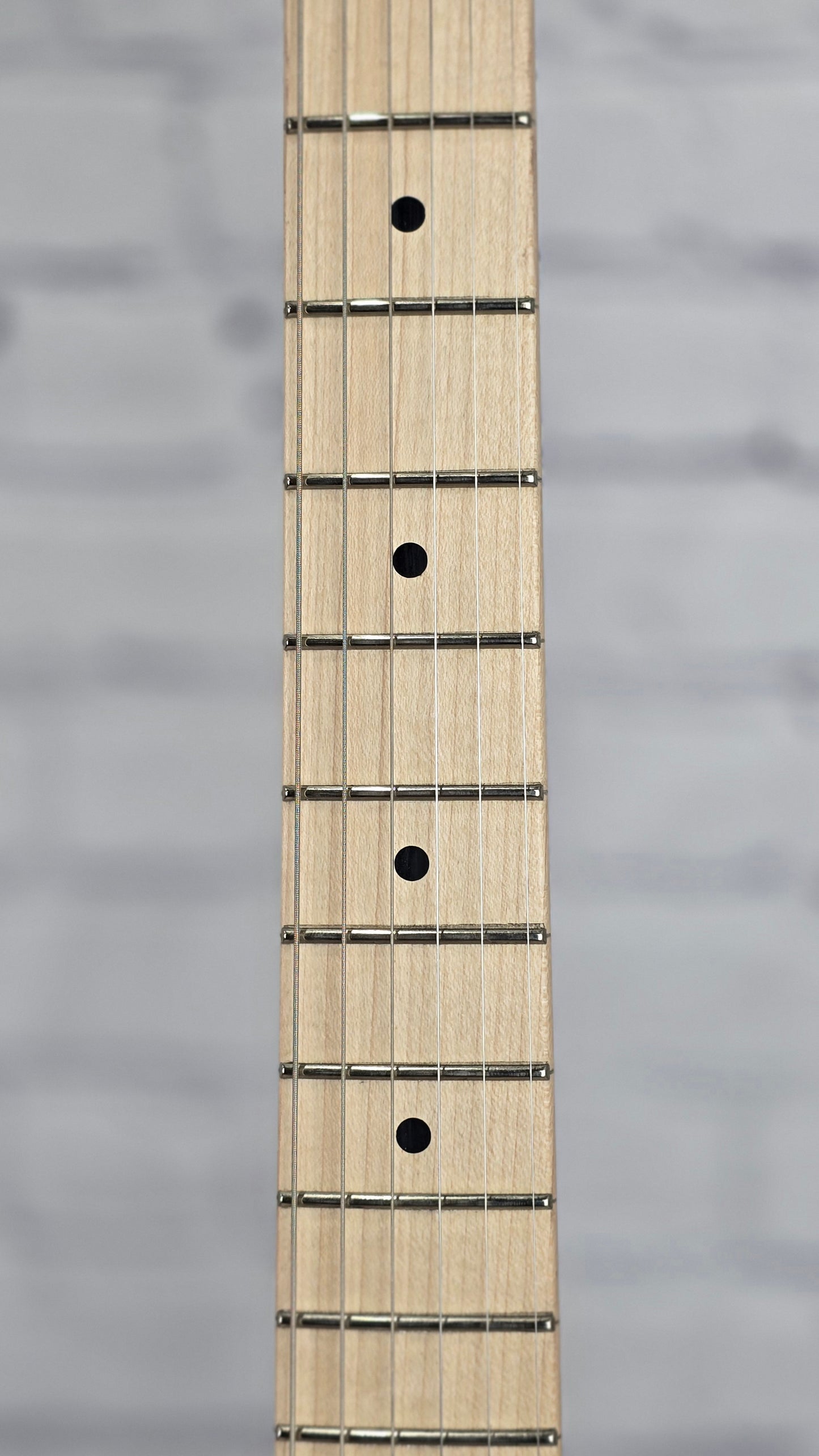

The Striped Series 5150 has a basswood body identical to the original, with a bolt-on quartersawn maple neck featuring a comfortable modified "C" profile, hand-rubbed satin urethane finish on the back and unique "hockey stick" headstock. The fast-playing 12"-16" compound radius maple fingerboard has 22 jumbo frets, black dot inlays and a convenient heel-mount truss rod adjustment wheel.

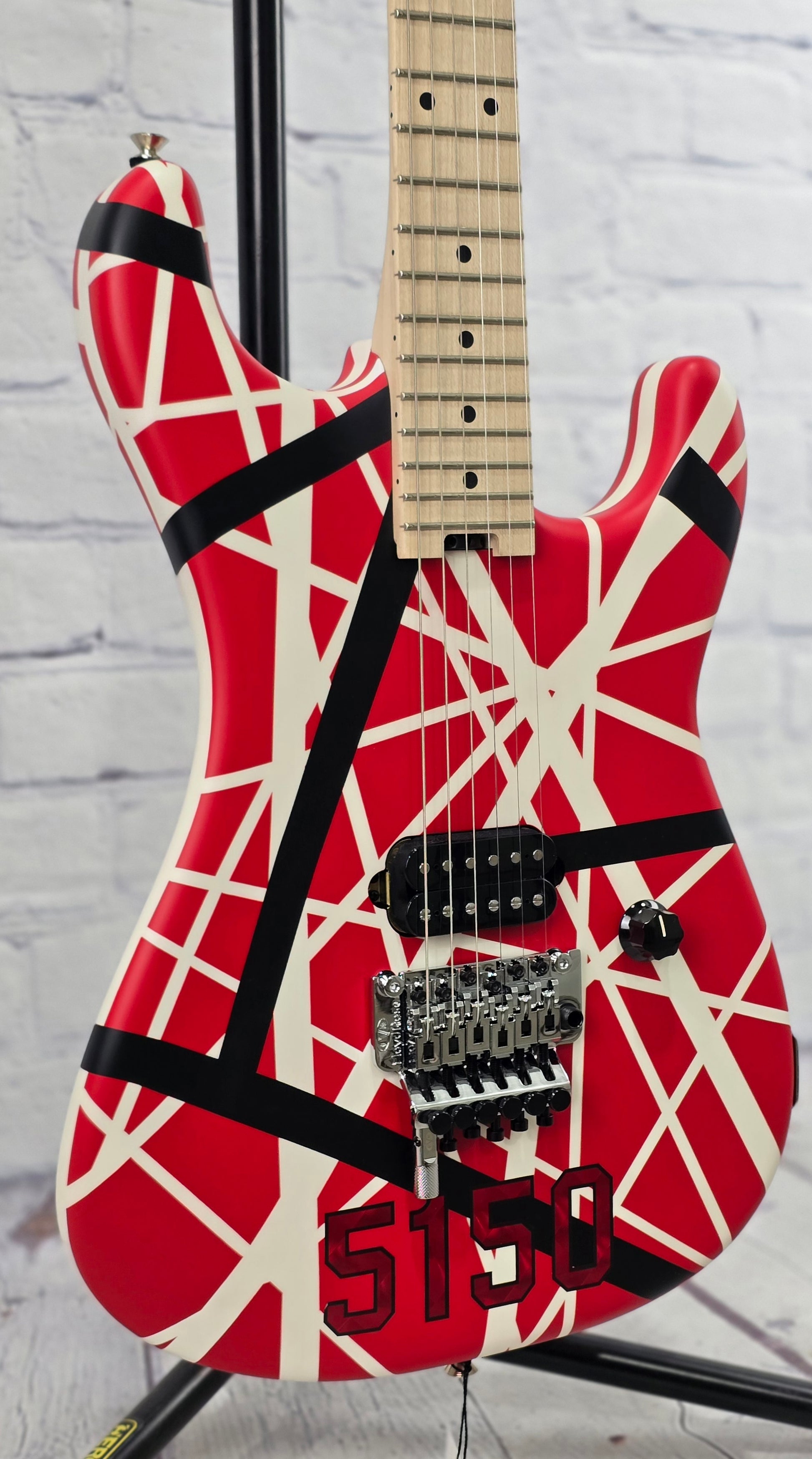

The 5150 is also fitted with a custom-designed EVH® Wolfgang® alnico 2 humbucking bridge pickup, delivering the perfect amount of power and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. A custom designed EVH-branded low-friction volume knob provides for unmatched performance and even-volume tapering for the smoothest volume swells.

Decked out with a rock solid "dive bomb" certified EVH-branded Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

With its quintessential red 5150 hologram numbers and star decals, the Striped Series 5150 is a high-powered, high-performance machine that's as kickass to look at as it is to play.

S/N: EVH2509854
Weight: 7lb 8oz

Specifications:

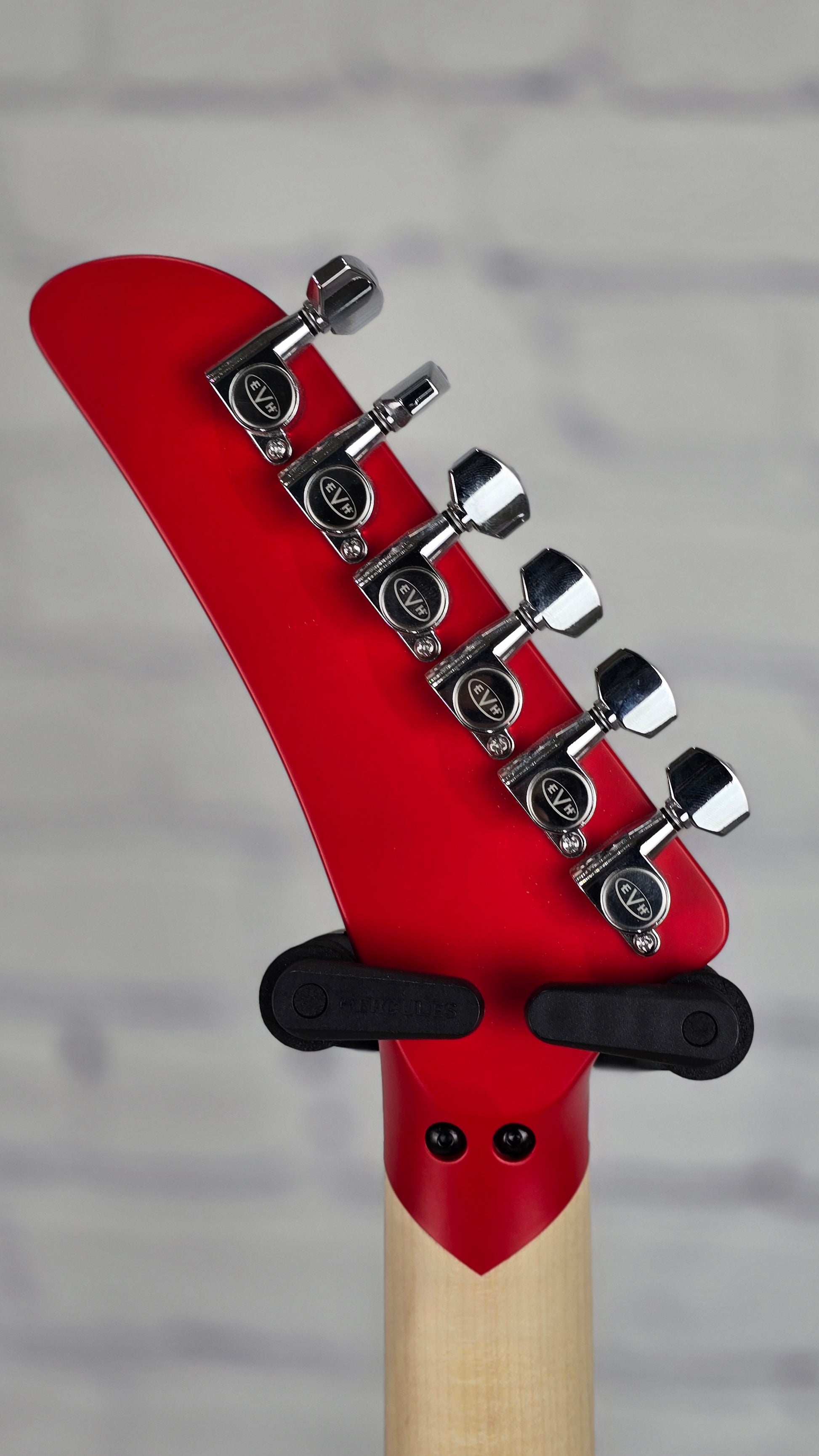

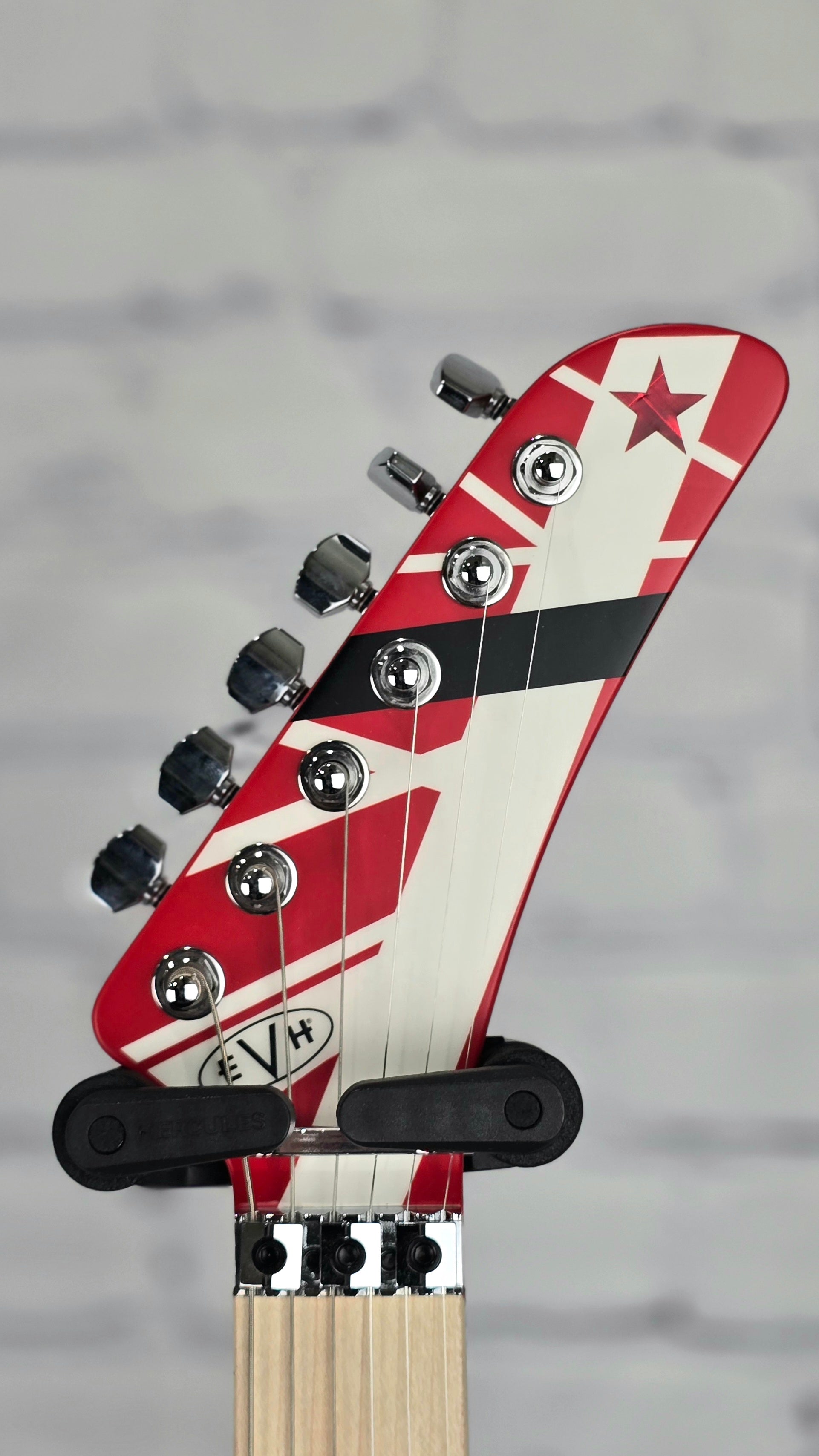

Headstock: EVH® Hockey Stick
Neck Material: Quartersawn Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: EVH® Modified "C" Backshape
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Number of Frets: 22
Truss Rod: EVH®-Branded with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® R3 Locking
Nut Width: 1.685" (42.8 mm)
Nut Material: Floyd Rose® R3 Locking
Fret Size: Jumbo
Scale Length: 25.5" (648 mm)
Body: Basswood
Body Finish: Gloss Urethane
Body Shape: 5150™
Body Material: Basswood
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Bridge Mounting: 2-Point Modern
Tremolo Block: Brass
Pickup Covers: Black
Control Knobs: Black Knurled with White Indicator
Hardware Finish: Chrome
Tuning Machines: EVH®-Branded Gotoh®
String Trees: Floyd Rose® Retainer Bar
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Neck Plate: 4-Bolt Standard
Strap Buttons: Oversized
Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
Pickup Configuration: Single Humbucker
Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Switching: None
Included Accessories: Tremolo Arm, Hex Keys & User Manual
Truss Rod Wrench: 2.5 mm Hex
