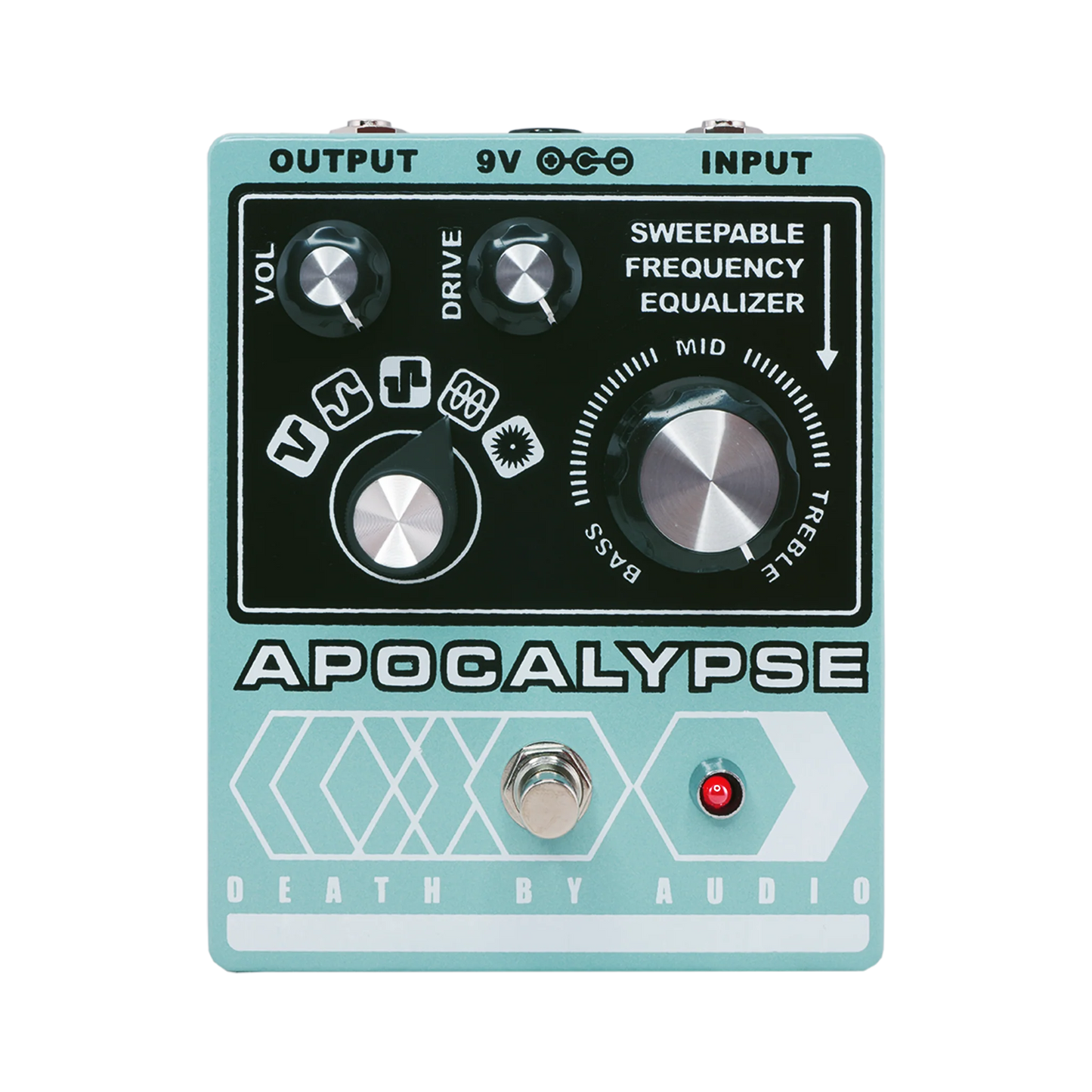

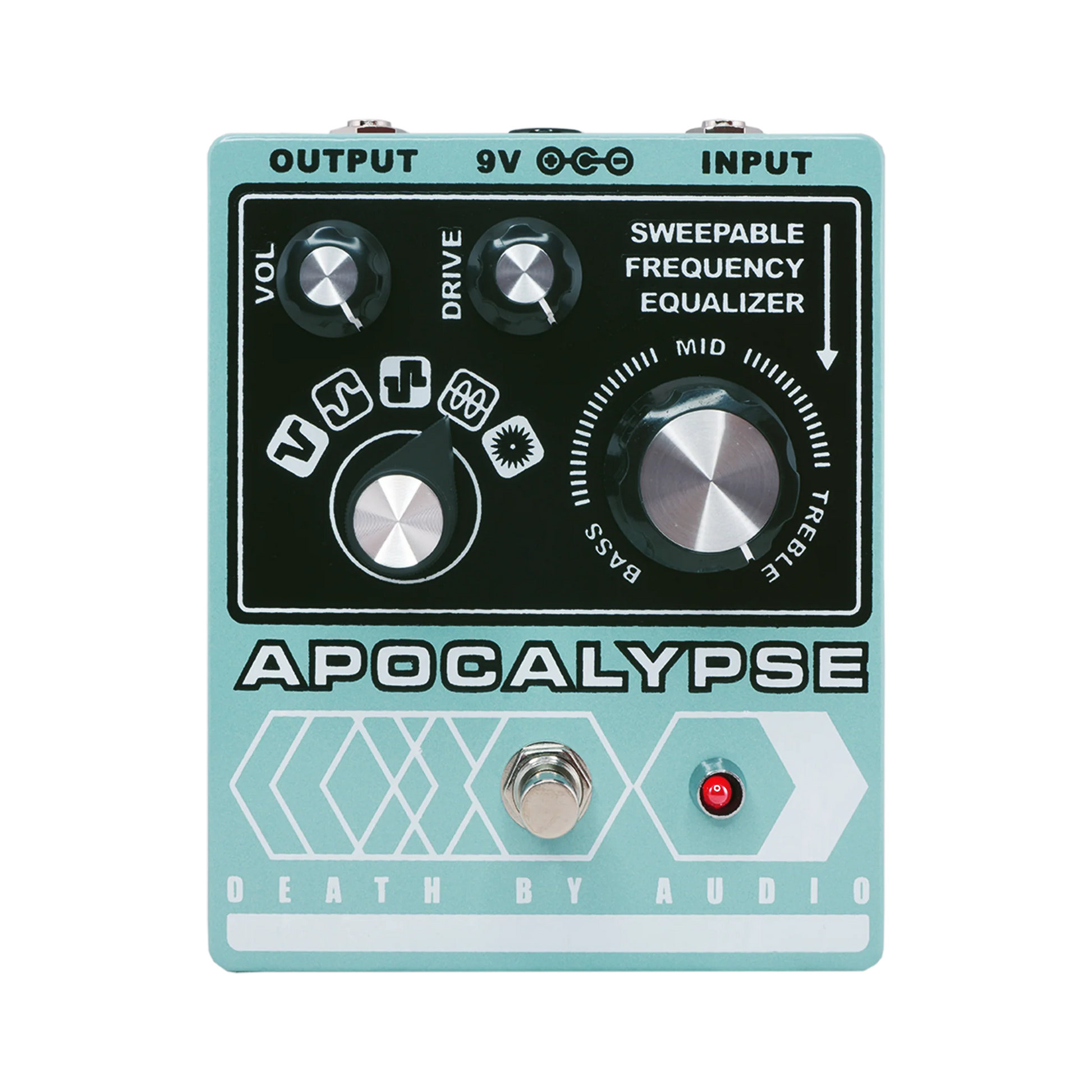

Death By Audio Apocalypse Versatile Fuzz Pedal
Death By Audio Apocalypse Versatile Fuzz Pedal
Couldn't load pickup availability
FUZZ TO THE NEXT LEVEL
The Apocalypse is our jack-of-all trades fuzz pedal. After being dramatically overdriven, the signal is routed to one of five selectable post-amplifiers for five wild and unique fuzz tones. Toggle through its five signal paths and choose your desired apocalyptic sound. To further refine this beast, control the Sweepable Frequency Equalizer and carve your tone out just the way you like it.
Use this pedal as a boost for solos, an amp simulated recording DI, your main fuzz sound, a bass blitzer, or run anything into it you want to beef up, blast out, destroy, or supercharge!!
Knobs
Volume
Adjusts the output volume of the pedal.
Drive
Controls the volume of the initial preamp inside the pedal. Turn it up to get more distortion and fuzz or pull it back to get cleaner overdrives and boosts.
Sweepable Frequency Equalizer
This is a special tone knob designed to function as a multitude of tone controls simultaneously. Its range is extreme, starting with a bass booster that fades into a mid scoop, followed by a mid boost, and eventually into a few stages of treble-boosting to give you a beautiful bright sound.
Rotary Selector
Twin-T Scoop
A circuit adding bass and treble simultaneously. Quieter volume than the rest.
War Fuzz
A very full and dynamic distortion with rich harmonics and sustain.
Dual J-FET
Similar to the War Fuzz setting using dual J-FETs to get its sound.
Octave Rect
Sums the bottom and top halves of a waveform to create an octave up.
Gain x1000
The gain is cranked super high on this post amp causing erratic results.
Specs:
Power Supply: Standard 9 VDC power supply with a 2.1mm negative center barrel
Current Draw: 5.8 mA
Dimensions: 5.87" x 4.72" x 2.46" (including hardware)
Weight: 20 oz.
